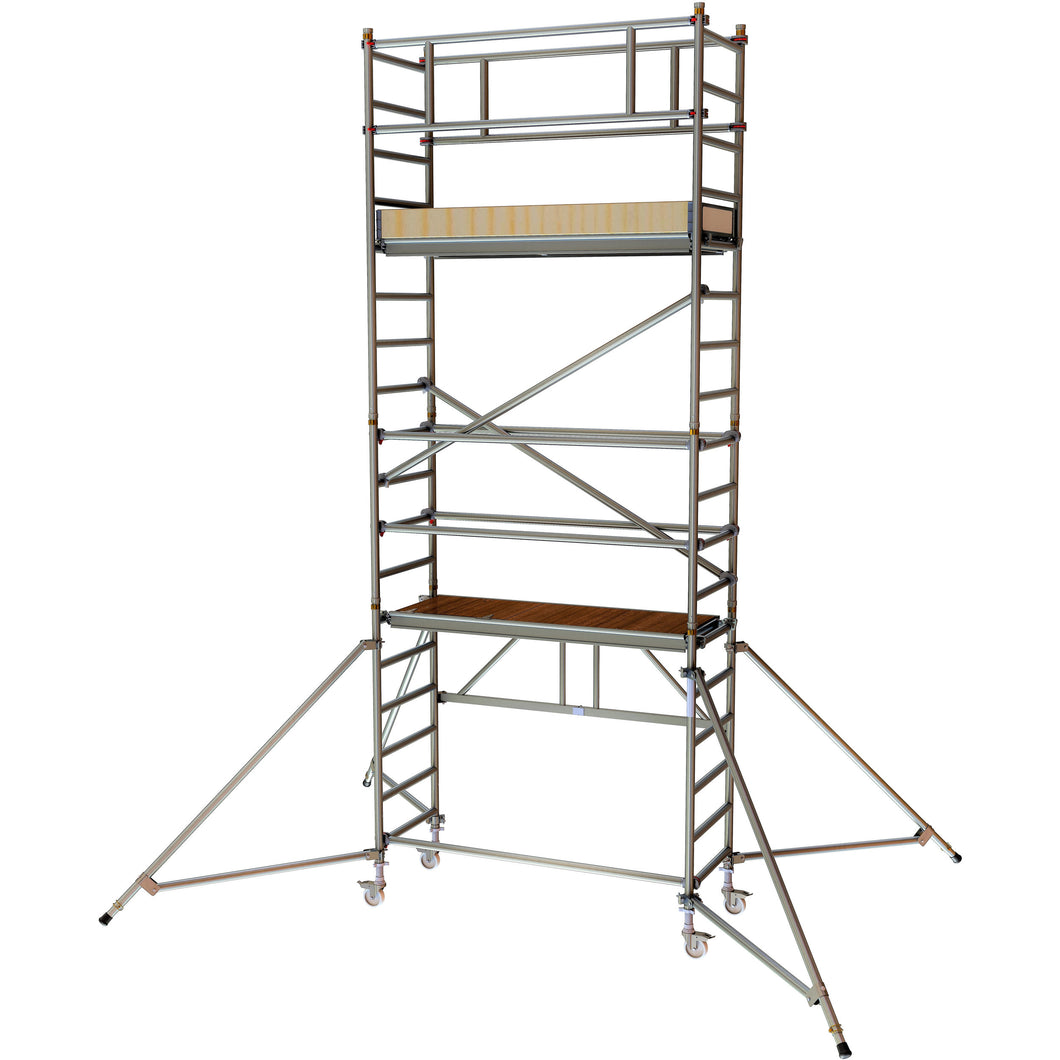

Professional tower system available in modular packs to build the tower up to 5.6m platform height with quick and safe assembly - 2m build intervals between each tower size.This Through the Trapdoor (3T) tower fully complies to the latest EN 1004-1 safety standard.
Free Delivery (5 working days)
Features:
- One-piece fold out snap-frame with simple, one-handed lock and release operation, for quick and easy set up.
- Innovative toe board system with no clips – removes the need for toe board clips reducing the amount of loose components.
- Smooth slot-in spigots to prevent tilting when the end frames join together.
Specifications:
Stile diameter 45 mm
Rung diameter 45 mm
Platform width 0.6 m
Scaffolding class 3
Order number 5535142
Claw type automatic
Platform height 3.6 m
Platform length 1.8 m
Warranty 10 years
fits-doorways-td Yes
Wheel diameter 125 mm
Transport dimensions approx. 2.200 mm × approx. 750 mm × approx. 850 mm
Overall height 4.6 m
Working height 5.6 m
Platform size 0,6m × 1,8m
Incl. stabilisers Yes
Weight 112.8 kg
Incl. toeboards Yes
*Safe working height based on a 2m height and reach of a person whilst standing on the highest level platform.
**Load includes user, tools, materials, etc.
1 x 5535102 PAXTower Base Pack Tower 0.6m
1 x 5427942 PAXTower Adjustable Leg Pack
1 x 5535502 PAXTower EN1004 Stabiliser and Toe Board Pack
1 x 5535532 PAXTower 1m Extension Pack 3T
1 x 5535542 PAXTower 2m Extension Pack 3T
